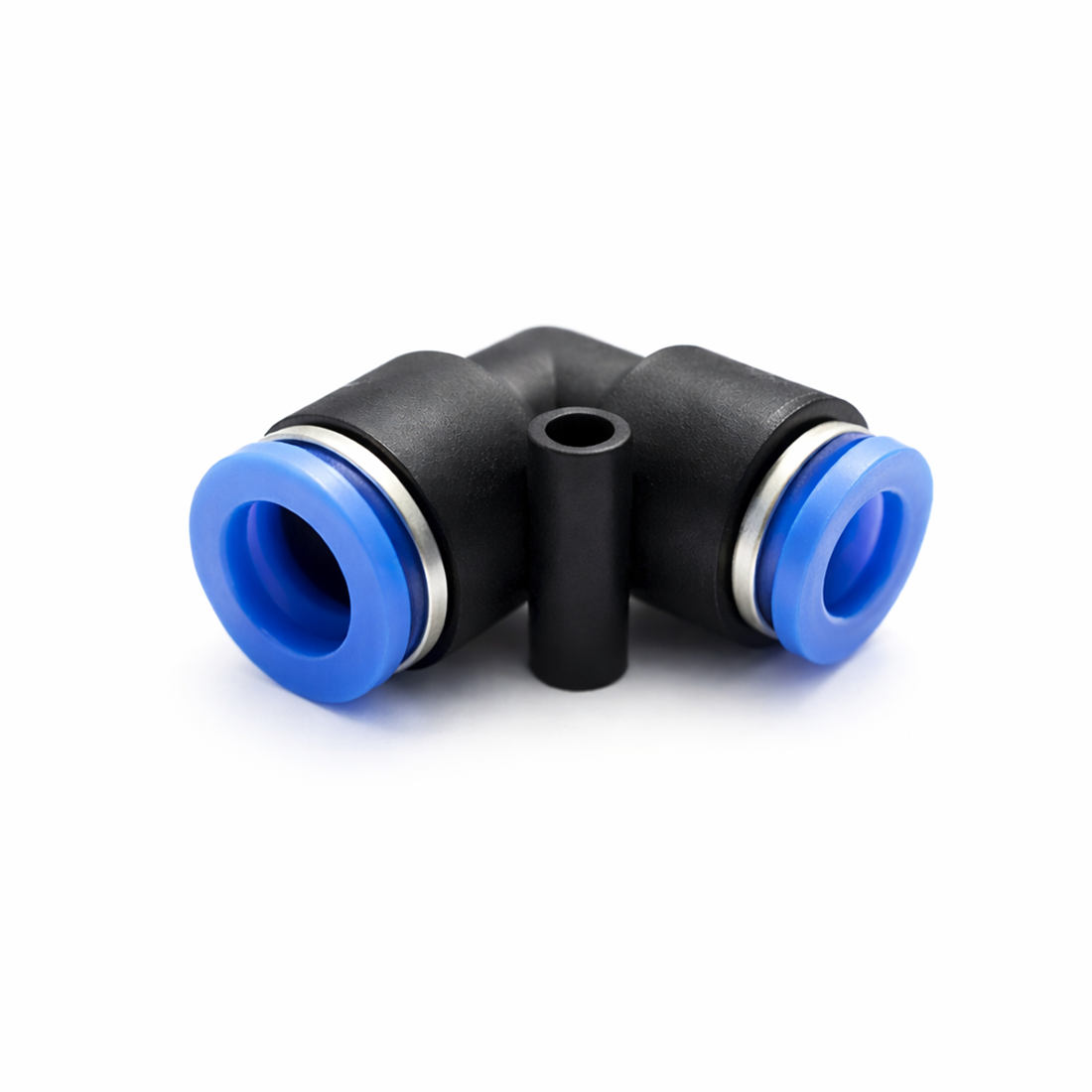

Tube to Tube Elbow Connector (90° Pneumatic Fitting)

The Tube to Tube Elbow Connector (90° Pneumatic Fitting) is designed to connect two tubes at a right angle, allowing efficient direction change of air or fluid flow without bending or stressing the tubing. It is an essential component for creating compact, clean, and organized piping systems in pneumatic and industrial applications.

By eliminating sharp bends, this elbow fitting helps protect tubes from damage, reduce stress, and maintain consistent airflow and pressure throughout the system.

Manufactured from high-quality engineering plastic, the connector is lightweight, durable, and resistant to corrosion and wear, making it suitable for long-term use in industrial environments. It provides a secure, leak-resistant connection, ensuring reliable system performance.

Compatible with PU tubes, nylon tubes, and other flexible pneumatic tubing, the tube to tube elbow connector is widely used in automation systems, CNC machinery, packaging equipment, and compressed air lines.

With its user-friendly push-fit design, it allows quick installation and easy maintenance, helping reduce downtime and improve operational efficiency.

Key Features:

• 90° elbow design for directional flow control
• Connects two tubes without bending or stress
• Durable engineering plastic construction
• Lightweight and corrosion-resistant
• Leak-proof and pressure-stable connection
• Compatible with PU, nylon, and flexible tubes
• Quick push-fit installation and removal

Applications:

• Pneumatic air lines and compressed air systems
• Industrial automation and machinery
• CNC machines and engineering setups
• Packaging and manufacturing equipment
• Air compressor piping systems
• Space-constrained installations
