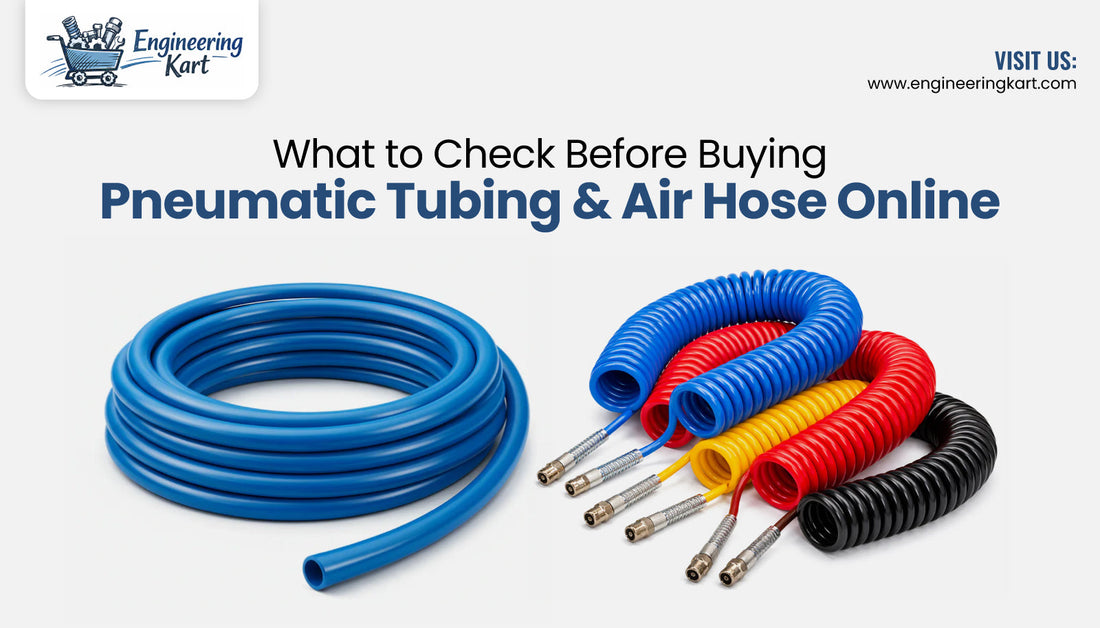

What to Check Before Buying Pneumatic Tubing and Air Hose Online

Buying pneumatic tubing, air hose, flexible tubing, and associated components online has never been easier. Engineering supply platforms now offer vast catalogues of pneumatic pipe, polyurethane tubing, nylon tube, PVC hose, braided hose pipe, spiral hose, and pneumatic fittings — searchable, filterable, and deliverable to your door with minimal friction. For engineers, maintenance teams, and procurement managers who need to replenish stock quickly or source a specific component without a distributor visit, this is enormously convenient.

But convenience carries a risk: the ease of buying online can make it easy to buy the wrong thing. Pneumatic tubing looks similar across very different specifications. A polyurethane tubing product listing that shows a coiled blue tube and a price doesn't automatically tell you whether that tube has the pressure rating, the temperature resistance, the wall thickness, or the chemical compatibility your application requires. And unlike buying, say, the wrong size of fastener — which you discover immediately when you try to use it — buying the wrong pneumatic hose or air tubing may not reveal itself until the component fails in service, potentially causing downtime, damage, or a safety incident.

This guide covers everything you should check before completing an online purchase of pneumatic tubing, air hose, and related components — so that what arrives is exactly what your application needs.

Check 1: Understand the Dimensional Specification Fully — OD, ID, and Wall Thickness

The most fundamental specification for any pneumatic tubing, flexible tubing, or air hose is its dimensional specification: the outer diameter (OD), inner diameter (ID), and wall thickness. Getting these wrong means the tube either won't fit the pneumatic fittings you're connecting it to, won't have adequate pressure capacity, or won't fit through the conduit or cable management you're routing it through.

Outer diameter (OD) is the dimension that determines fitting compatibility. Push-in pneumatic fittings — the most common type used with polyurethane tubing, nylon tube, and PVC hose — are specified by the OD of the tube they accept. A 6mm OD push-in fitting accepts only 6mm OD tube. It will not accept 6mm ID tube (which will have a larger OD depending on wall thickness) or 1/4 inch tube (which is 6.35mm OD and won't seat correctly in a metric fitting). When ordering replacement tubing, always verify the OD — not the ID — if you are using push-in fittings.

Inner diameter (ID) determines the flow capacity of the tubing. For a given OD, a thinner-walled tube has a larger ID and therefore higher flow capacity — but also lower pressure rating. A thicker-walled tube has smaller ID and lower flow capacity but higher pressure rating. For most general pneumatic applications at typical system pressures (6 to 10 bar), standard wall thickness tubes are appropriate. For higher-pressure systems or for applications where flow rate is critical, verify that the ID and wall thickness match your requirements.

Wall thickness is the critical safety parameter. The pressure rating of pneumatic tubing is a direct function of the tube material, the OD, and the wall thickness. Never substitute a thin-walled tube for a standard-wall or thick-wall tube without verifying that the pressure rating of the substitute is adequate for your system. Listing pages for pneumatic tubing and air tubing should always state the working pressure rating — if they don't, ask before buying.

A note on imperial versus metric sizing: In markets where both imperial and metric specifications are in use, dimensional mix-ups are a common source of purchasing errors. Verify whether the product is specified in millimetres or inches before ordering. A pneumatic pipe specified in 1/4 inch OD is not the same as one specified in 6mm OD, even though they appear similar.

Check 2: Verify the Material and Its Suitability for Your Application

Pneumatic tubing and air hose are available in several different materials, each with different properties in terms of pressure rating, temperature range, chemical resistance, flexibility, and longevity. Ordering the wrong material is a very common online purchasing mistake — particularly when price-shopping leads a buyer toward the cheapest listing without checking what material it's made from.

Polyurethane tubing (PU tube) is the most widely used material for pneumatic applications. It is highly flexible, lightweight, kink-resistant, and available in a wide range of colours for colour-coding of pneumatic circuits. Standard polyurethane tubing works well at temperatures from around -20°C to +60°C and at pressures up to 12 bar depending on the OD and wall thickness. It has good resistance to oils but limited resistance to some solvents and UV radiation. For general-purpose pneumatic applications in controlled indoor environments, polyurethane tubing is typically the best choice.

Nylon tube is harder and less flexible than polyurethane but offers superior temperature resistance (typically -40°C to +100°C or higher for PA12 grades), better chemical resistance, and higher pressure ratings for equivalent wall thickness. Nylon tube is the preferred choice for pneumatic pipe runs that are exposed to heat, for applications requiring long straight runs where the rigidity of nylon is actually advantageous, and for environments with significant chemical exposure. It is more difficult to cut cleanly than polyurethane and requires more care in routing to avoid kinking at bends.

PVC hose is the most economical pneumatic tubing material and is widely available, but it has the most limited performance characteristics of the three. PVC hose hardens and becomes brittle in cold temperatures, softens in heat, and has relatively poor resistance to oils and many industrial chemicals. Its practical temperature range is roughly 0°C to +60°C, and it is not recommended for permanent installations in industrial environments where reliability and longevity are required. PVC hose is suitable for light-duty, temporary, or low-cost applications but should not be specified where polyurethane or nylon would be appropriate.

Braided hose pipe uses a reinforced construction — typically a rubber or polyurethane inner bore with a textile or wire braid reinforcement layer and an outer cover — to achieve higher pressure ratings and greater resistance to kinking and damage than plain-wall tubing. Braided hose is used for flexible connections where higher pressure ratings are required, for air hose from drops to tools, and for applications where the hose is subject to physical abuse, dragging across floors, and external impact. When buying braided hose pipe online, check the pressure rating, the fitting compatibility at each end, and the end coupling specification.

Spiral hose — sometimes called recoil hose or coiled air hose — is a PU or nylon hose wound in a spiral spring form that extends under use and retracts when not in use. It is the standard solution for air hose supply to handheld pneumatic tools and is popular in workshop and assembly environments where a hanging coil hose prevents the trip and entanglement hazards associated with long loose hoses. When buying spiral hose online, check the extended length (how long it stretches to), the retracted length, the OD of the hose (which determines fitting compatibility), and the working pressure rating.

Check 3: Confirm the Pressure Rating Exceeds Your System Pressure — with Margin

Every pneumatic tubing product, air hose, flexible tubing product, and pneumatic pipe specification should include a working pressure rating. This is the maximum continuous operating pressure the tube is certified to handle safely. Before completing any online purchase of pneumatic components, verify that the working pressure rating of the tube you are ordering is higher — preferably significantly higher — than the actual operating pressure of your system.

The reason for building in margin is that pneumatic systems are rarely at constant, perfectly stable pressure. Pressure spikes — brief but significant excursions above the set working pressure — occur in most systems, particularly at startup, when directional control valves shift suddenly, and when compressors cycle on and off. A tube rated exactly at your system pressure has no tolerance for these spikes. A tube rated at 1.5 to 2 times your system pressure handles them comfortably.

When in doubt, the product listing or datasheet should state both the working pressure (safe continuous operation) and the burst pressure (the pressure at which the tube will fail catastrophically). Responsible online suppliers publish both figures. If a listing shows only one pressure figure and it's unclear which it represents, contact the supplier before buying.

Check 4: Check Temperature Range Against Your Operating Environment

Temperature rating is the most frequently overlooked specification when buying pneumatic tubing online, and it's one that matters significantly in real industrial environments.

If your pneumatic pipe or air tubing runs through or near areas with elevated temperatures — near ovens, autoclaves, welding stations, heat treatment equipment, or even simply through poorly ventilated areas of a plant where ambient temperatures are high in summer — standard polyurethane tubing or PVC hose may not be appropriate. Both materials begin to soften and lose pressure integrity above their rated temperature limits, which in industrial environments may be reached more easily than expected.

Similarly, cold environments — cold stores, outdoor installations, or unheated facilities in cold climates — can push PVC hose below its minimum temperature rating, at which point it becomes brittle and prone to cracking under bending stress or pressure shock.

For product listings, the temperature rating is sometimes listed simply as a range (e.g., -20°C to +60°C) and sometimes not listed at all. If the temperature range is not stated in the listing and the application involves any temperature exposure beyond standard room temperature, contact the supplier and ask for the full datasheet before purchasing.

Check 5: Verify Fitting Compatibility Before Ordering Tubing and Fittings Together

If you are ordering both pneumatic tubing and pneumatic fittings together — as part of building or expanding a pneumatic system — compatibility between the two is critical and deserves explicit verification rather than assumption.

Push-in pneumatic fittings are specified for a specific tube OD. A fitting rated for 8mm OD tube does not work reliably with 6mm or 10mm OD tube. This seems obvious but is a surprisingly frequent source of returns and project delays when buyers order tubing and fittings from different listings without cross-referencing the specifications.

Beyond OD compatibility, the tube material affects fitting performance. Push-in fittings are generally optimised for polyurethane tubing, which has the right combination of hardness and surface compliance for the collet gripping mechanism to work correctly. Some fittings work well with nylon tube; others — particularly those with softer collet materials — may not grip nylon reliably. Check whether the pneumatic fittings you are ordering are explicitly compatible with the tube material you are using.

For systems using metric tube sizes, ensure that the fittings you're ordering are also metric. For imperial systems, ensure consistency throughout. Metric and imperial connections cannot be interchanged without adapters.

Check 6: Evaluate the Supplier — Quality, Documentation, and After-Sales Support

When buying pneumatic tubing, air hose, flexible tubing, polyurethane tubing, nylon tube, PVC hose, and pneumatic fittings online, not all suppliers are equal. The component you receive should meet the specifications stated in the listing — but with pneumatic components, the consequences of substandard quality are not just inconvenience, they're potential system failure. Verifying the supplier's credibility before purchasing is worth the few minutes it takes.

Look for:

Published datasheets and technical specifications. A reputable supplier of pneumatic pipe and tubing products will have full technical datasheets available — either on the product listing page itself or provided on request. These datasheets should include material specification, dimensional tolerances, working pressure, burst pressure, temperature range, chemical resistance data, and applicable standards. If none of this information is available, the supplier cannot demonstrate what they're actually selling you.

Brand and manufacturer information. Reputable pneumatic components — particularly pneumatic fittings and pneumatic hose fittings — are produced by identifiable manufacturers with established reputations. While generic or own-brand products can be legitimate, the complete absence of any manufacturer or brand information on a component listing is a potential quality risk flag.

Return and quality assurance policies. If the product received doesn't match the specification, or if there's a quality issue, a reputable supplier will have a clear returns and resolution process. Check this before purchasing, particularly for larger orders.

Stock availability and lead times. For pneumatic components needed for maintenance or repair — where downtime is ongoing while you wait — accurate stock information and realistic lead time statements are important. Be cautious of listings that show "in stock" when fulfilment times suggest otherwise.

Check 7: Order Quantity and Cut Lengths — Avoiding Waste and Shortage

Pneumatic tubing, air tubing, and air hose are typically sold either in fixed reel lengths (common lengths are 25m, 50m, and 100m reels) or cut-to-length by the metre. Before ordering, calculate your required length carefully — accounting for routing paths (which are always longer than straight-line distances), connection loops, service loops at equipment where movement occurs, and a contingency for errors and future changes.

Buying slightly more than you calculate you need is always prudent. Having to order a second reel because you ran 2 metres short is frustrating and typically costs more per metre than ordering slightly generously in the first place. On the other hand, ordering significantly more than you need — particularly of products with a defined shelf life like polyurethane tubing, which degrades over time even in storage — leads to waste.

For pneumatic fittings, order a small quantity of spares beyond your immediate project requirement. Fittings are damaged during installation (over-insertion, overtightening) and having spares on hand avoids project delays. The unit cost of additional fittings is low; the cost of a project stall while you wait for a replacement order is not.

A Quick Pre-Purchase Checklist

Before completing your online order for pneumatic tubing, air hose, or pneumatic fittings, run through this list:

• OD confirmed as compatible with fittings being used
• ID confirmed as adequate for required flow rate
• Wall thickness and working pressure rating confirmed as adequate for system pressure, with margin
• Tube material confirmed as appropriate for temperature range of application
• Tube material confirmed as appropriate for chemical environment
• Tube material compatibility with specified fittings confirmed
• Metric or imperial consistency confirmed throughout
• Supplier datasheet or technical specification available and reviewed
• Order quantity calculated with appropriate contingency
• Lead time confirmed as acceptable for your project timeline
