The Ultimate Pneumatic Connectors Checklist: How to Choose the Right Fitting for High-Pressure Air Hoses

A pneumatic system is only as reliable as its weakest connection point, and in most compressed air setups, that weak point is a fitting selected on assumption rather than specification — the wrong thread standard, an undersized bore restricting flow, or a material that can't handle the operating pressure or environment. Air leaks at fittings are one of the largest sources of energy waste in industrial compressed air systems, and most of them trace back to a connector that was never quite right for the application.

This checklist walks through what actually needs to be verified before ordering pneumatic fittings, pneumatic connectors, or pneumatic hose fittings for a high-pressure air hose setup — so you're specifying based on the system's real requirements, not just matching a hose diameter.

Why Fitting Selection Deserves More Attention Than It Gets

Pneumatic fittings look interchangeable at a glance — most of them are small, similarly shaped, and sold in bulk catalogs sorted mainly by size. But the wrong choice creates real operational problems: pressure drop across an undersized fitting reduces tool performance at the point of use, incompatible thread standards cause leaks or cross-threading damage, and a fitting material mismatched to the operating environment fails prematurely, sometimes in a way that isn't obvious until the leak has already been costing compressed air (and money) for weeks.

The Checklist

1. Confirm the thread standard — don't assume compatibility Pneumatic systems commonly use BSP (British Standard Pipe), NPT (National Pipe Thread), or metric threads, and these are not interchangeable despite sometimes looking similar. Mixing standards is one of the most common causes of leaking or damaged fittings on-site. Always confirm the thread standard already in use on your pneumatic pipe or manifold before ordering replacement or additional fittings — don't rely on visual matching alone.

2. Match fitting bore size to actual flow requirement, not just hose OD A fitting sized correctly to the outer diameter of your pneumatic tubing can still restrict flow if its internal bore is narrower than the tubing's actual inner diameter. For applications feeding pneumatic tools or cylinders with meaningful air demand, check the fitting's flow coefficient (Cv) against your system's required flow rate, not just the tube size on the label.

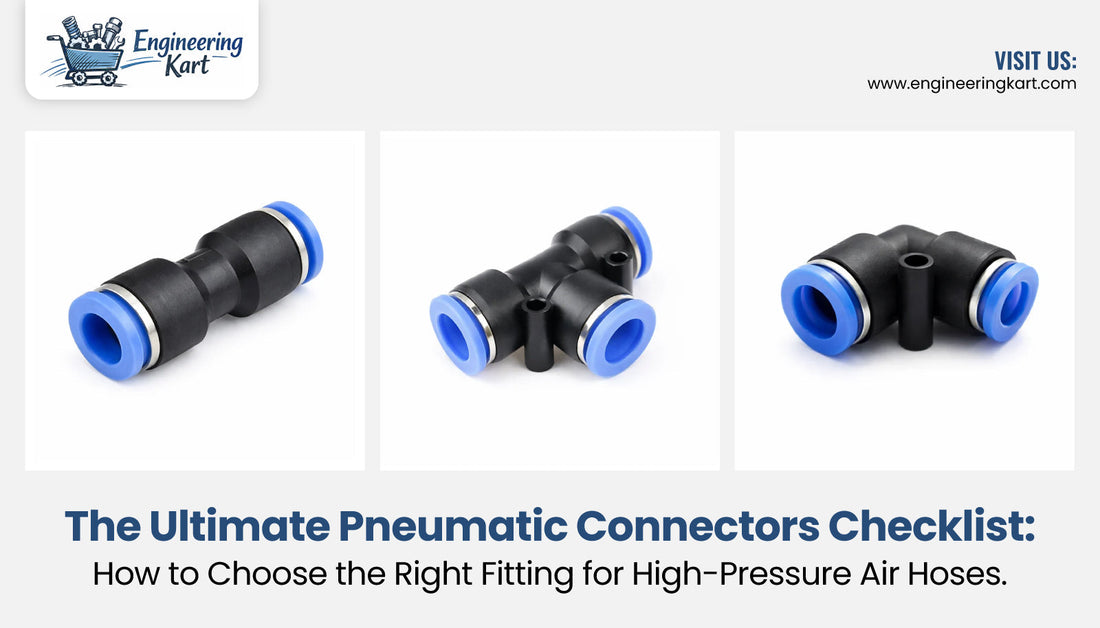

3. Select connector type based on how often the connection will be made or broken Push-to-connect (push-fit) fittings are fast to install and ideal for tubing runs that are set up once and rarely disturbed. Quick-connect couplers are the right choice where hoses are frequently attached and detached — tool stations, workshop drop lines — since they're designed for repeated connection cycles without wear-related leaks. Threaded/compression fittings suit permanent or semi-permanent installations where vibration resistance and a fully sealed joint matter more than quick disconnection.

4. Verify pressure rating against your system's actual operating pressure — including spikes Every fitting has a maximum working pressure rating, but system design should account for pressure spikes (compressor cycling, valve actuation) that can briefly exceed steady-state operating pressure. A fitting rated exactly at your average operating pressure with no margin is under-specified; build in a safety margin, particularly for high-pressure air hose applications.

5. Choose fitting material for the operating environment, not just the pressure spec

·         Brass fittings — the standard general-purpose choice, good corrosion resistance and widely compatible with standard pneumatic tubing.

·         Nickel-plated brass — added corrosion resistance for washdown or humid environments.

·         Stainless steel — required for corrosive environments, food-grade applications, or outdoor installations with significant weather exposure.

·         Polymer/composite fittings — lightweight and cost-effective for lower-pressure applications, but generally not the right choice for genuinely high-pressure air hose systems.

6. Confirm tubing compatibility — material matters as much as size A fitting rated correctly for pressure can still fail if it's not designed for the specific tubing material in use. Polyurethane tubing, nylon tube, and PVC hose each have different wall characteristics and flexibility, and push-to-connect fittings in particular are often designed with tolerances specific to one tubing type. Confirm the fitting manufacturer's compatibility spec against your actual tubing material.

7. Account for vibration and movement in the installation Fittings on equipment subject to vibration (compressors, mobile equipment, pneumatic cylinders in motion) benefit from a locking or compression-style connector rather than a basic push-fit, which can work loose over sustained vibration cycles.

8. Don't overlook temperature range Standard pneumatic fittings are rated for a defined temperature range; applications near heat sources or in outdoor installations with significant seasonal temperature swings need fittings and seals (typically O-ring material) rated for that full range, not just room-temperature operating conditions.

Common Mistakes That Cost the Most in the Long Run

Standardizing on one fitting type across an entire facility regardless of application. It's operationally convenient to stock one connector type, but a fitting that's right for a low-vibration workshop drop line isn't necessarily right for a mobile equipment application with constant vibration and movement.

Ignoring flow restriction on long tubing runs. Pressure drop compounds over distance; a fitting with a slightly restrictive bore on a short run may be negligible, but the same fitting on a long air line feeding a pressure-sensitive tool can create a real performance problem at the point of use.

Under-speccing for pressure spikes rather than steady-state pressure. This is the most common cause of premature fitting failure in systems that "should have" been rated correctly on paper.

Getting It Right the First Time

Pneumatic fitting selection isn't complicated once the checklist above is worked through systematically — but it does require knowing your system's actual thread standard, flow requirement, pressure profile (including spikes), and operating environment before ordering, rather than matching a fitting to a hose diameter and assuming that's sufficient.
