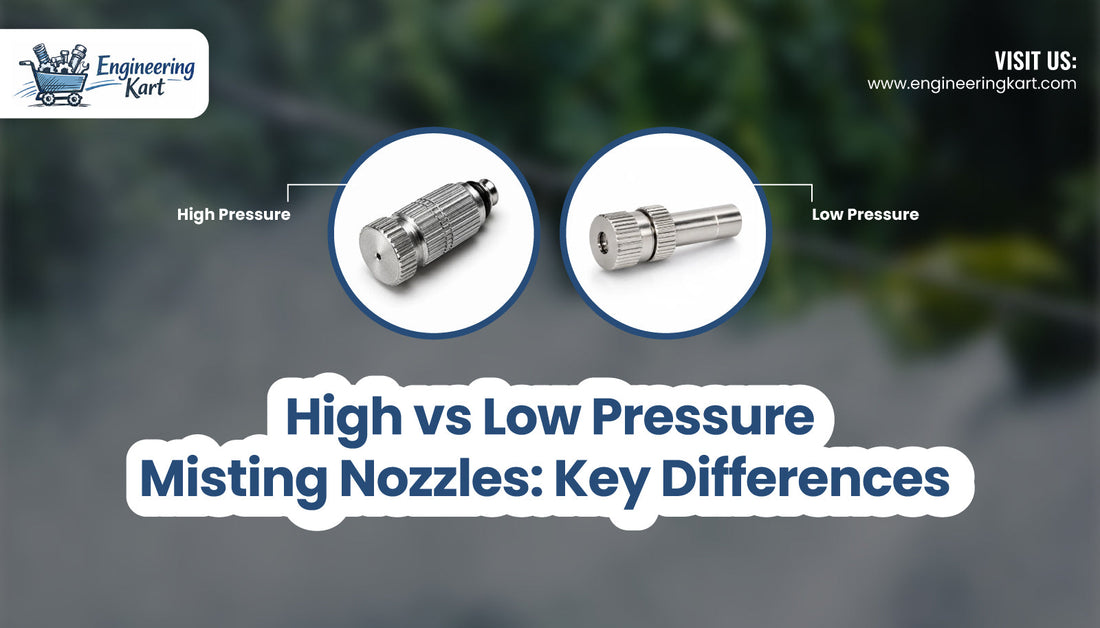

High vs Low Pressure Misting Nozzles: Key Differences

If you've ever walked into a restaurant patio on a scorching afternoon and felt that sudden, almost inexplicable coolness without getting wet, you've experienced a high pressure misting system doing exactly what it was designed to do. If you've set up a garden misting system at home and noticed the droplets are larger and you do get a little damp — that's low pressure at work.

Both serve a purpose. Both have their place. But confusing the two, or buying the wrong one for your application, is a frustratingly common mistake that costs time, money, and in some cases damages the equipment or space you were trying to protect.

Why Pressure Is Everything in a Misting System

The entire logic of a misting system depends on one physical principle: evaporative cooling. Water droplets, when fine enough, evaporate before they hit a surface. That evaporation pulls heat from the surrounding air, dropping the ambient temperature. The size of those droplets is almost entirely determined by pressure.

High pressure forces water through an extremely small orifice at speed, shattering it into micron-sized particles. Low pressure does the same, but with far less force — producing larger droplets that evaporate more slowly, or in some cases don't evaporate at all before landing on surfaces.

What Counts as High vs Low Pressure?

Low pressure misting systems operate at standard tap or household water pressure — typically 40 to 100 PSI (2.7 to 7 bar). These systems need no pump beyond what's already in your water supply. The nozzles are simpler, the misting tube and fittings are lighter, and the whole setup is significantly cheaper to install.

High pressure misting systems operate at 800 to 1,200 PSI (55 to 83 bar). These need a dedicated high pressure pump — usually stainless steel or brass — to reach that pressure. The nozzles are precision-engineered with orifices as small as 0.1mm, and every system component — tubing, pneumatic fittings, pneumatic hose fittings, connectors — must be rated for high pressure operation.

The Nozzle: What's Actually Different Inside

At first glance, a high pressure misting nozzle and a low pressure one can look nearly identical. The difference lives inside.

High pressure nozzles have orifices between 0.1mm and 0.3mm. Low pressure nozzles typically run 0.3mm to 0.6mm or larger. That fraction of a millimetre makes an enormous difference in droplet size. High pressure through a 0.2mm orifice produces droplets in the 5 to 20 micron range — classified as dry fog. They evaporate so rapidly they cool without wetting. Low pressure through a 0.5mm orifice produces droplets of 100 microns or more. These are visible, fall faster, and wet whatever surface they land on.

High pressure nozzles need to handle 1,000+ PSI continuously. You'll find them in solid brass, 316 stainless steel, or nickel-plated brass with precision-machined orifices. Low pressure misting nozzles are far more forgiving — many are made from nylon or ABS with brass inserts, and for a basic outdoor misting system or garden misting system, that's completely adequate.

One practical feature worth noting: high quality high pressure nozzles often include an anti-drip valve — a spring-loaded ball that seals the orifice when pressure drops. This prevents dripping after shutdown, reduces water waste, and stops mineral deposits building up around the tip. Low pressure nozzles sometimes include this, but many don't.

Cooling Performance: Real Numbers

A properly specified high pressure outdoor misting system can drop ambient air temperature by 10 to 15 degrees Celsius. In dry climates with low humidity, 20°C drops are achievable — without wetting people, furniture, or equipment.

A low pressure misting system typically produces a 3 to 8 degree Celsius drop, depending on ambient humidity and airflow. In dry climates, it works reasonably well. In humid environments — coastal cities, monsoon season — low pressure misting systems can struggle, because the air is already saturated and evaporation slows considerably. High pressure systems still work in humidity because the droplets are so fine they evaporate faster regardless.

Where Each System Belongs

High pressure misting systems are the right choice for commercial outdoor dining and hospitality — restaurants, resorts, event venues where guests expect cooling without getting damp. They're also used in industrial cooling for manufacturing floors and warehouses, greenhouse and agricultural cooling to protect plants and livestock, and large-scale sports and event facilities where thousands of nozzles run simultaneously.

Low pressure misting systems belong in residential garden misting systems where budget matters and moderate cooling is sufficient, greenhouse humidification where surface moisture is acceptable, dust suppression on construction sites where larger droplets are actually better at knocking particles from the air, and livestock cooling sheds where low cost and large-scale coverage matter more than dryness.

Misting Tube, Fittings, and System Compatibility

The nozzle doesn't work in isolation. For a low pressure misting system at 60 to 80 PSI, standard PVC hose, polyurethane tubing, or flexible tubing with standard push-in pneumatic fittings handles the job without issue.

For a high pressure system at 1,000 PSI, you need high pressure rated misting tube — typically stainless steel hard pipe or high pressure braided hose — and fittings rated for the same. Standard pneumatic connectors are not designed for 1,000 PSI and will fail. This is a genuine safety issue, not a minor spec detail.

Maintenance

Both high and low pressure misting nozzles clog from mineral scale in hard water areas. High pressure nozzles clog faster because their orifices are smaller. Regular soaking in citric acid or dilute white vinegar clears most deposits. High pressure systems also require an inline filter rated to 50 microns or finer — grit reaching a precision orifice will damage it permanently.

High pressure pumps need oil changes, seal replacement, and periodic inspection. Low pressure systems running off mains supply have no pump to maintain at all.

Cost

A basic residential low pressure garden misting system — 10 metres of misting tube, 15 nozzles, fittings, and a timer — can be assembled for ₹3,000 to ₹8,000. A mid-tier high pressure outdoor misting system with a pump, high pressure braided hose, stainless nozzles, and professional fittings runs ₹25,000 to ₹60,000 or more. Match the system to the application — neither is universally superior.
